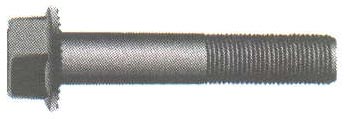

• Serrated Flange Bolts
  • Dimensions per IFI-111
  • Case hardened for added toughness to teeth
  • Core hardness equivalent to Grade 5
  • Other materials and finishes available. For further information, call or send an information request.
1 - 25 of 85 | Results Per Page | View | Unit of Measure
1 2 3 4
Request Information Compare Items Search by Specification

Item #

Thread Size

Length

Thread Length

Grade/Class

Finish

Thread Style

N/A Custom N/A Custom N/A Custom N/A Custom N/A Custom N/A Custom
N/A 6-32 N/A 1/4 in N/A 12 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 6-32 N/A 3/8 in N/A 12 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 6-32 N/A 1/2 in N/A 12 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 6-32 N/A 5/8 in N/A 12 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 6-32 N/A 3/4 in N/A 12 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 6-32 N/A 1 in N/A 12 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 8-32 N/A 1/4 in N/A 16 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 8-32 N/A 5/16 in N/A 16 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 8-32 N/A 3/8 in N/A 16 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 8-32 N/A 1/2 in N/A 16 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 8-32 N/A 5/8 in N/A 16 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 8-32 N/A 3/4 in N/A 16 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 8-32 N/A 1 in N/A 16 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 10-24 N/A 3/8 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 10-24 N/A 1/2 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 10-24 N/A 5/8 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 10-24 N/A 3/4 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 10-24 N/A 1 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Coarse Thread
N/A 10-32 N/A 1/4 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Fine Thread
N/A 10-32 N/A 3/8 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Fine Thread
N/A 10-32 N/A 1/2 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Fine Thread
N/A 10-32 N/A 5/8 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Fine Thread
N/A 10-32 N/A 3/4 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Fine Thread
N/A 10-32 N/A 1 in N/A 20 1/2 in N/A 120M psi N/A Zinc/Clear N/A Fine Thread
1 - 25 of 85 | Results Per Page | View | Unit of Measure
1 2 3 4
